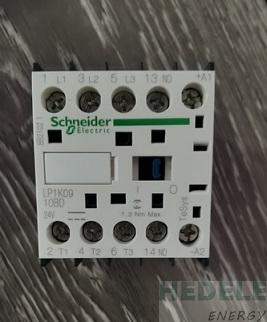

LP1K0910BD

Rate:

0.0000/5

( 0 reviews )

Item NO.: V027911 MOQ: 0

Weight: 0.3kgs

Package Size:

Price：

$21.20

Qty：

$21.20

Shipping：

Calculate Shipping Cost

LP1K0910BD

delivery time：in stock

Main
range of product	TeSys K
range	TeSys
product or component type	Contactor
device short name	LP1K
contactor application	Motor control Resistive load
utilisation category	AC-3 AC-1 AC-4
poles description	3P
pole contact composition	3 NO
[Ie] rated operational current	20 A (at <50 °C) at <= 440 V AC AC-1 for power circuit 9 A at <= 440 V AC AC-3 for power circuit 16 A (at <70 °C) at 690 V AC AC-1 for power circuit
auxiliary contact composition	1 NO

Complementary
auxiliary contacts type	type instantaneous 1 NO
control circuit voltage limits	Operational: 0.8...1.15 Uc (at <50 °C) Drop-out: 0.1...0.75 Uc (at <50 °C)
[Ui] rated insulation voltage	Power circuit: 600 V conforming to UL 508 Power circuit: 690 V conforming to IEC 60947-4-1 Signalling circuit: 690 V conforming to IEC 60947-4-1 Signalling circuit: 690 V conforming to IEC 60947-5-1 Signalling circuit: 600 V conforming to UL 508 Power circuit: 600 V conforming to CSA C22.2 No 14 Signalling circuit: 600 V conforming to CSA C22.2 No 14
[Uimp] rated impulse withstand voltage	8 kV
overvoltage category	III
mounting support	Rail Plate
flame retardance	V1 conforming to UL 94 Requirement 2 conforming to NF F 16-101 Requirement 2 conforming to NF F 16-102
tightening torque	1.3 N.m - on screw clamp terminals - with screwdriver Philips No 2 1.3 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm
[Ue] rated operational voltage	Power circuit: 690 V AC 50/60 Hz Signalling circuit: <= 690 V AC 50/60 Hz
[Ith] conventional free air thermal current	20 A (at 50 °C) for power circuit 10 A (at 50 °C) for signalling circuit
Irms rated making capacity	110 A AC for power circuit conforming to NF C 63-110 110 A AC for power circuit conforming to IEC 60947 110 A AC for signalling circuit conforming to IEC 60947
rated breaking capacity	110 A at 415 V conforming to IEC 60947 110 A at 440 V conforming to IEC 60947 80 A at 500 V conforming to IEC 60947 110 A at 220...230 V conforming to IEC 60947 110 A at 380...400 V conforming to IEC 60947 70 A at 660...690 V conforming to IEC 60947
associated fuse rating	25 A gG at <= 440 V for power circuit 25 A aM for power circuit 10 A gG for signalling circuit conforming to IEC 60947 10 A gG for signalling circuit conforming to VDE 0660
average impedance	3 mOhm - Ith 20 A 50 Hz for power circuit
inrush power in W	3 W (at 20 °C)
hold-in power consumption in W	3 W at 20 °C
operating time	30...40 ms coil energisation and NO closing 10 ms coil de-energisation and NO opening
safety reliability level	B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1 B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1
mechanical durability	10 Mcycles
maximum operating rate	3600 cyc/h
minimum switching current	5 mA for signalling circuit
minimum switching voltage	17 V for signalling circuit
insulation resistance	> 10 MOhm for signalling circuit
height	58 mm
width	45 mm
depth	57 mm
net weight	0.225 kg

Complementary

auxiliary contacts type
type instantaneous 1 NO

control circuit voltage limits
Operational: 0.8...1.15 Uc (at <50 °C)
Drop-out: 0.1...0.75 Uc (at <50 °C)

[Ui] rated insulation voltage
Power circuit: 600 V conforming to UL 508
Power circuit: 690 V conforming to IEC 60947-4-1
Signalling circuit: 690 V conforming to IEC 60947-4-1
Signalling circuit: 690 V conforming to IEC 60947-5-1
Signalling circuit: 600 V conforming to UL 508
Power circuit: 600 V conforming to CSA C22.2 No 14
Signalling circuit: 600 V conforming to CSA C22.2 No 14

[Uimp] rated impulse withstand voltage
8 kV

overvoltage category
III

mounting support
Rail
Plate

flame retardance
V1 conforming to UL 94
Requirement 2 conforming to NF F 16-101
Requirement 2 conforming to NF F 16-102

tightening torque
1.3 N.m - on screw clamp terminals - with screwdriver Philips No 2
1.3 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm

[Ue] rated operational voltage
Power circuit: 690 V AC 50/60 Hz
Signalling circuit: <= 690 V AC 50/60 Hz

[Ith] conventional free air thermal current
20 A (at 50 °C) for power circuit
10 A (at 50 °C) for signalling circuit

Irms rated making capacity
110 A AC for power circuit conforming to NF C 63-110
110 A AC for power circuit conforming to IEC 60947
110 A AC for signalling circuit conforming to IEC 60947

rated breaking capacity
110 A at 415 V conforming to IEC 60947
110 A at 440 V conforming to IEC 60947
80 A at 500 V conforming to IEC 60947
110 A at 220...230 V conforming to IEC 60947
110 A at 380...400 V conforming to IEC 60947
70 A at 660...690 V conforming to IEC 60947

associated fuse rating
25 A gG at <= 440 V for power circuit
25 A aM for power circuit
10 A gG for signalling circuit conforming to IEC 60947
10 A gG for signalling circuit conforming to VDE 0660

average impedance
3 mOhm - Ith 20 A 50 Hz for power circuit

inrush power in W
3 W (at 20 °C)

hold-in power consumption in W
3 W at 20 °C

operating time
30...40 ms coil energisation and NO closing
10 ms coil de-energisation and NO opening

safety reliability level
B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1
B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1

mechanical durability
10 Mcycles

maximum operating rate
3600 cyc/h

minimum switching current
5 mA for signalling circuit

minimum switching voltage
17 V for signalling circuit

insulation resistance
> 10 MOhm for signalling circuit

height
58 mm

width
45 mm

depth
57 mm

net weight
0.225 kg
