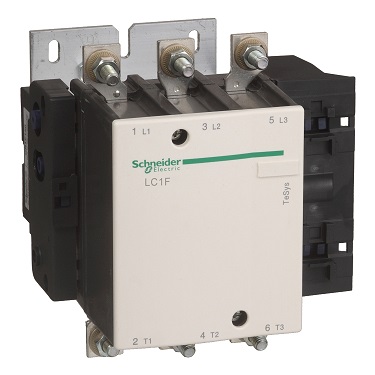

Schneider TeSys F Series Three-Pole Contactor Body, LC1F185
instock
Product series TeSys
Product name TeSys F
Product Type Contactor
Product short name LC1F
Contactor application field Squirrel cage motor for switching on and off normal start
Applied to AC loads with a power factor greater than or equal to 0.95
Use category AC-3
AC-4
AC-1
Number of poles 3P
Power pole contact composition 3 NO
Rated operating voltage [Ue] <= 690 V AC 50/60 Hz
Rated operating current [Ie] 275 A 40 °C) on ... <= 440 V AC-1
185 A 55 °C) on... <= 440 V AC-3
Motor power (kW) 100 kW on 415 V AC 50/60 Hz (AC-3)
100 kW on... 440 V AC 50/60 Hz (AC-3)
110 kW on... 500 V AC 50/60 Hz (AC-3)
90 kW on... 380...400 V AC 50/60 Hz (AC-3)
55 kW on... 220...240 V AC 50/60 Hz (AC-3)
110 kW on... 660...690 V AC 50/60 Hz (AC-3)
33 kW on... 400 V AC 50/60 Hz (AC-4)
Additional information
Rated impulse withstand voltage [Uimp] 8 kV
Overvoltage category III
Conventional heating current [Ith] 275 A on ... <40 °C
Rated turn-on capability [Irms] 1850 A Compliance with IEC 60947-4-1
Rated breaking capacity 1480 A in accordance with IEC 60947-4-1
Rated short-time withstand current [Icw] 1500 A on ... <40 °C - 10 s
920 A on ... <40 °C - 30 s
740 A on ... <40 °C - 1 minute
500 A on ... <40 °C - 3 minutes
400 A on ... <40 °C - 10 minutes
Disclaimer: This document does not represent or is used to determine suitability or reliability for a particular user application.
2019-8-9
1
Fuses used with relays 200 A aM on... <= 440 V
315 A gG on... <= 440 V
Average impedance 0.33 mΩ - Ith 275 A 50 Hz
Rated insulation voltage [Ui] 1000 V in accordance with IEC 60947-4-1
1500 V compliant with VDE 0110 Group C
Power consumption per pole 25 W AC-1
12 W AC-3
Installation method
Compliance with standards IEC 60947-4-1
EN 60947-1
JIS C8201-4-1
EN 60947-4-1
IEC 60947-1
Product Certification ABS
LROS (Lloyds register of shipping)
RINA
CSA
IEC CB report
UL
BV
RMRoS
DNV
Wiring capability Power circuit: Terminal 2 Cable Cable cross section: 25 x 3 mm
Power circuit: ring terminal 1 cable 150 mm2
Power circuit: Terminal 1 Cable 150 mm2
Power circuit: bolted connection
Tightening torque Power circuit: 18 N.m
surroundings
IP protection class IP2x front panel with protective cover in accordance with IEC 60529
IP2x front panel with protective cover in accordance with VDE 0106
Protective measures TH
Operating temperature -5...55 °C
Storage environment temperature -60...80 °C
Ambient air temperature -40...70 °C
Working altitude 3000 m no
Impact and vibration resistance Seismic performance Contact opening: 2 gn (5...300 Hz)
Seismic resistance Contact closure status: 5 gn (5...300 Hz)
Impact resistance Contact opening: 7 Gn for 1/2 sine wave (11 ms)
Impact resistance Contact closure: 15 Gn for 1/2 sine wave (11 ms)
Height 174 mm
Width 168.5 mm
Depth 181 mm
Product weight 5.45 kg
