Features
Double certification, suitable for a variety of environments z The housing is made of stainless steel material z Vertical installation z Protective cover, head, decoder, camera is highly integrated Function menu z 360 ° horizontal continuous rotation z + 90 ° ~ -90 ° vertical rotation gas explosion-proof series YHW126 flameproof integrated universal camera
Protection level reaches IP68
Indoor and outdoor installation, all-weather use
With bracket or base mounting
Can be used in the gas explosion-proof zone 1, zone 2 and dust explosion-proof zones A20 to A22.
product description

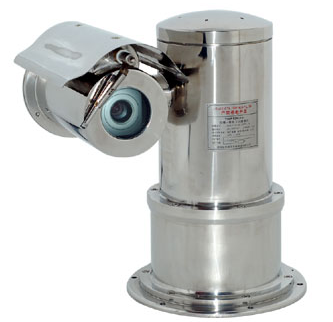

YHW126 explosion-proof integrated universal camera is the latest explosion-proof monitoring equipment. This product can be used alone in an environment with flammable and explosive gases and flammable dust to achieve the purpose of monitoring the scene.
The body adopts an integrated structure design, there is no external connection cable between the gimbal and the camera, and it can rotate horizontally, vertically and in all directions.
It integrates a high-definition integrated color camera, a full-speed variable-speed PTZ and a multi-function decoding controller. It integrates multiple communication protocols and communication speeds and can respond to various host commands.
00VAC ~ 240VAC wide voltage working range. With variable horizontal and vertical rotation speed, the rotation speed of the gimbal depends on the focal length of the lens and the range of the joystick. It can be as fast as 40 ° / s and as low as 0.1 ° / s. It can easily capture activities even at the longest focal end. Object; 360 ° continuous horizontal rotation, -90 ° ~ + 90 ° vertical rotation angle.
With 128 preset positions, the preset positions include the horizontal and vertical positions of the PTZ and the focal position of the lens.
Through the OSD menu, various parameters of the camera can be set; and advanced functions such as pattern scanning and vector scanning can be realized.
Randomly equipped with sunshade and wiper; can be equipped with automatic heating components. The automatic heating assembly can ensure the equipment to work stably for a long time under the temperature of -40 ° C to + 60 ° C.
Convenient installation and simple maintenance. It can be installed by fixed bracket, base, column and tower.
Recommended accessories
YH-Jxd explosion-proof junction box KJ2028E / D explosion-proof control box YHZ-B6 wall mount bracket
Certification
Explosion-proof mark: ExdⅡCT6 / DIP A20 TA, T6
Explosion-proof certificate number: CNEx09.2410
Production license number: XK06-014-00898
Mechanical index
Texture
Stainless steel 304 or 316L
Protection level: IP68
Horizontal rotation: 360 ° continuous rotation
Vertical rotation: + 90 ° ~ -90 °
Horizontal rotation speed: 0.1 ° / S ~ 40 ° / S
Vertical rotation speed: 0.1 ° / S ~ 40 ° / S
Unit weight: 28Kg
Shipping weight: 31Kg
Installation: fixed bracket, base, column
Environmental indicators
Atmospheric pressure: 86 ～ 106KPa
Ambient temperature: -40 ℃ ~ + 60 ℃
Relative humidity: U95% RH (+ 25 ° C)
Electrical index
Input voltage: 100VAC ~ 240VAC
Working current: <1A
Power consumption: about 100W
Communication: RS-485
Communication speed: multiple, configurable
Communication protocol: multiple, configurable
Number of preset positions: 128
Preset position accuracy: ± 0.1 °
Automatic heating: start automatic heating below -10 ℃
Electrical connection: 6-core integrated cable, leading out 2.5 meters
among them:
Power cable
Core shielded cable connection control signal
Coaxial cable output video signal
Camera parameters
The following are typical configurations. Cameras of other specifications can be selected as options after confirmation.
Brand SONY
Model FCB-CX480CP
Standard PAL image sensor 1/4 ″ Exview HAD CCD
Line Scan / Field Scan 15.625KHz / 50Hz
Pixel resolution 752 (H) x 582 (V)
High-performance 18x optical zoom lens / autofocus
F1.4 ~ 3.0, f = 4.1 ～ 73.8mm / 12 times electronic zoom
Minimum focal length 0.29m (wide angle) / 0.8m (telephoto)
Field of view 48 ° (wide) / 2.8 ° (telephoto)
Minimum Illumination: 0.7Lux (color) / 0.01Lux (black and white)
Number of lines 480 lines
S / N ratio> 50dB
Video output BNC interface / 1.0Vp-p / 75Ω
