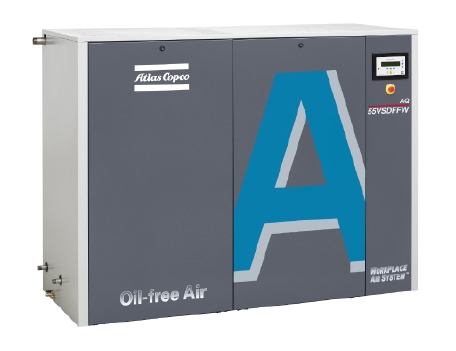

AQ30-55 / AQ37-55VSD

Rate:

0.0000/5

( 0 reviews )

Item NO.: V017630 MOQ: 0

Weight: 0kgs

Package Size:

Price：

$0.00

Qty：

$0.00

Shipping：

Calculate Shipping Cost

Powerful oil-free compressed air
When you need to clean and oil-free compressed air, there can not be any compromise on quality in the past few decades, Atlas Copco has been a leader in oil-free screw compressor technology, provides a full range of 100% oil-free compressor. We received ISO 8573-1 CLASS 0 level certification, AQ water-screw compressor in the compressed air purity, the creation of a new standard that can provide water-cooled models, can also provide air-cooled models. There are high-voltage, high-efficiency models to meet customer demand for oil-free compressed air.

Why AQ?
In the pharmaceutical, food, precision electronics or similar situations, safety and quality of compressed air to the client terminal product quality and production process is essential. Specially developed for such applications, providing the highest purity of compressed air, Atlas Copco AQ oil-free air compressors, in addition to the danger of the oil, and there is no additional cost. Preventing the import into the oil, resulting in oil-free compressed air, have lower operating and maintenance costs, AQ or CLASS 0 level certification by the compressor.

AQ Why can reduce energy consumption?
Since the energy consumption will account for more than 70% of a compressor's lifecycle costs, the importance is obvious. The most energy-efficient air compressor pressure needs to be optimized for each process flow and air handling. Atlas Copco's AQ compressors provide integrated solutions that can reduce up to 35% of the electricity, due to compression during the cooling effect of the water, the heat from the source is removed, compressed air per KW generated more.

AQ somewhere ahead?
Through a lot of practice and continuous innovation, Atlas Copco oil-free compressors leader in the field more than sixty years, because it is the first company to receive ISO 8573-1 CLASS 0 level certification manufacturer, we again purity of compressed air to create a new industry standard. Heartfelt consideration for the application of the customer, Atlas Copco has designed a series of AQ compressors to meet customer demand for 100% oil-free compressed air.

Parameters Table AQ30-55,50Hz models

压缩机型号	最大工作压力（bar/psig）		流量FAD			电机功率		噪音	重量(kg)
压缩机型号	pack	FF	l/s	m³/min	cfm	kw	hp	dB（A）	pack	FF
风冷机型
AQ30 7.5	7.5/109	7.29/105	84.9	5.1	180.1	30	40	68	1226	1320
10	10/145	9.75/141	68.3	4.1	144.8	30	40	68	1226	1320
13	13/189	12.75/185	53	3.2	113	30	40	68	1226	1320
AQ37 7.5	7.5/109	7.29/105	102	6.1	215.4	37	50	69	1298	1395
10	10/145	9.75/141	86.4	5.2	183.6	37	50	69	1298	1395
13	13/189	12.75/185	69.2	4.2	148.3	37	50	69	1298	1395
AQ45 7.5	7.5/109	7.29/105	121.4	7.3	257.8	45	60	71	1321	1416
10	10/145	9.75/141	98.1	5.9	208.4	45	60	71	1321	1416
13	13/189	12.75/185	82.2	4.9	173	45	60	71	1321	1416
AQ55 7.5	7.5/109	7.29/105	139.1	8.4	296.6	55	75	72	1378	1497
10	10/145	9.75/141	118.1	7.1	250.7	55	75	72	1378	1497
13	13/189	12.75/185	98.4	5.9	208.4	55	75	72	1378	1497
水冷机型
AQ30 7.5	7.5/109	7.29/105	88.5	5.3	187.5	30	40	65	1121	1215
10	10/145	9.75/141	71.2	4.3	151.8	30	40	65	1121	1215
13	13/189	12.75/185	55	3.3	116.5	30	40	65	1121	1215
AQ37 7.5	7.5/109	7.29/105	107.1	6.4	226.9	37	50	66	1193	1290
10	10/145	9.75/141	91.2	5.5	194.2	37	50	66	1193	1290
13	13/189	12.75/185	72.9	4.4	155.4	37	50	66	1193	1290
AQ45 7.5	7.5/109	7.29/105	128.5	7.7	272.3	45	60	67	1216	1313
10	10/145	9.75/141	108	6.5	230	45	60	67	1216	1313
13	13/189	12.75/185	89.9	5.4	190.7	45	60	67	1216	1313
AQ55 7.5	7.5/109	7.29/105	152.7	9.2	323.6	55	75	68	1273	1392
10	10/145	9.75/141	131.2	7.9	279	55	75	68	1273	1392
13	13/189	12.75/185	109	6.5	230	55	75	68	1273	1392

参数表AQ37-55VSD机型

压缩机型号	最大工作压力（bar/psig）		流量FAD			电机功率		噪音	重量(kg)
压缩机型号	bar	psig	l/s	m³/min	cfm	kw	hp	dB（A）	pack	FF
50-60Hz机型
风冷机型
AQ37VSD 13	13	175	42.0-104	2.5-6.2	89.0-220.4	37	50	69	1195	1306
AQ55VSD 13	13	175	42.3-154.9	2.5-9.3	89.6-328.2	55	75	72	1195	1306
水冷机型
AQ37VSD 13	13	175	42.0-108.0	2.5-6.5	89.0-228.8	37	50	66	1090	1201
AQ55VSD 13	13	175	41.9-160.9	2.5-9.7	88.8-340.9	55	75	69	1090	1201
