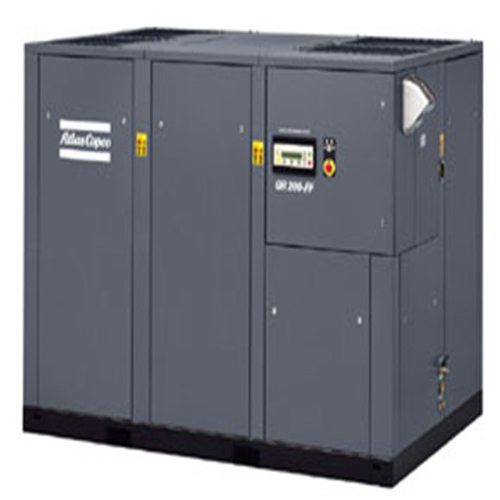

High pressure air compressor GR110-200

Rate:

0.0000/5

( 0 reviews )

Item NO.: V017626 MOQ: 0

Weight: 0kgs

Package Size:

Price：

$0.00

Qty：

$0.00

Shipping：

Calculate Shipping Cost

This series of two-stage oil-injected screw compressors for pressure from 13 bar to 20 bar high-pressure air.
This series of two-stage compressor design, low and high pressure rotor gearbox on the (IP-55, F class insulation) by a highly efficient TEFC motor drives, in order to ensure the most efficient operation possible at high pressure.
GR110-200 two high-pressure compressor series
1.GR110-200 series two-stage oil-injected screw compressors for pressure from 13 bar to 20 bar high-pressure air.
2. This series of two-stage compressor design, low and high pressure rotor gearbox on the (IP-55, F class insulation) by a highly efficient TEFC motor drives, in order to ensure the most efficient operation possible at high pressure.
Designed for high pressure air application and manufacture of new two GR compressor only high efficiency, but has all the features and advantages of GA compressors depend fame. At the same time, as a full-performance products, the new two GR compressor built a refrigerated air dryer. If we can also install the optional built-in filter, then the two GR compressor became a complete set of compressor equipment.
3. The new two GR Full Feature is a complete and efficient compressor equipment for applications that require higher pressure air applications.

Technical Parameters:

产品范围 Product Range	压缩机型号 Machine Type	最大工作压力 Bar	流量FAD m3/min	装机功率 kW	噪音 dB(A)	尺寸 LxWxH mm	重量 kG
产品范围 Product Range	压缩机型号 Machine Type	最大工作压力 Bar	流量FAD m3/min	装机功率 kW	噪音 dB(A)	尺寸 LxWxH mm	重量 kG
GA132/180/315VSD	GA132VSD	4	24.2	132	75	3386x1886x2010	3870
		7	23.9	132	75	3386x1886x2010	3870
		10	21.3	132	75	3386x1886x2010	3870
		13	18	132	75	3386x1886x2010	3870
	GA180VSD	4	28.9	180	75	3386x1886x2010	3870
		7	28.7	180	75	3386x1886x2010	3870
		10	25.1	180	75	3386x1886x2010	3870
		13	21.1	180	75	3386x1886x2010	3870
	GA315VSD	4	51.2	290	75	4000x2120x2400	6165
		7	50.8	290	75	4000x2120x2400	6165
		10	42.6	290	75	4000x2120x2400	6165
GR110-200两级13bar	GR110	13	15.3	110	72	2779x1886x1990	3140
	GR132	13	18.5	132	75	2779x1886x1990	3140
	GR160	13	22.1	160	75	2779x1886x1990	3547
	GR200	13	26.2	200	76	2779x1886x1990	3547
GR110-200两级20bar	GR110	20	12.6	110	72	2779x1886x1990	3410
GR110-200两级20bar	GR200	20	23.1	200	75	2779x1886x1990	3547
