HJ

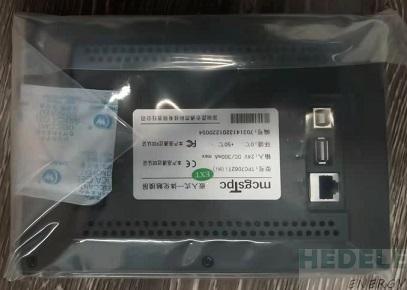

TPC7062Ti(Hi)
delivery time：in stock
LCD screen 7''TFT
Backlight LED
Display color 65535 true color
resolving power 800×480
Display brightness 200cd/㎡
touch screen touch screen
input voltage 24±20%VDC
Rated power 5W
processor Cortex-A8,600MHz
Memory 128M
system memory 128M
Ferroelectric storage Extensible
SD card storage Extensible
configuration software MCGS Embedded version
serial interface COM1 (RS232], com2, RS485), extensible (COM3, COM4)
Usb interface 1 master 1 slave
Ethernet port 10/100M self-adaption
Can interface Extensible
Storage temperature -10°C~60°C
working temperature 0°C~45°C
Working humidity 5%~90%
Casing material Industrial plastics
Panel size 226.5×163（mm）
Cabinet opening 215×152（mm）
Product certification CE/FCC
Degree of protection IP65（ front panel）
electromagnetic compatibility Industrial grade III
