T1C-[J1D-4]X３R Drive Coupling CLUTCH

Rate:

0.0000/5

( 0 reviews )

Item NO.: V027144 MOQ: 0

Weight: 30kgs

Package Size:

Price：

$1160.00

Qty：

$1160.00

Shipping：

Calculate Shipping Cost

[J1D-4]X３R Drive Coupling CLUTCH

YL20082802

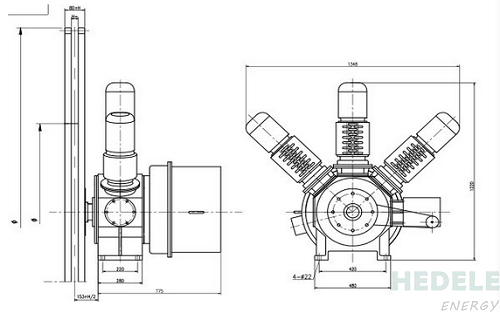

T1C-[J1D-4]X3R hysteresis cable reel with rated working voltage of 380V, used as a power cable reel, this model is equipped with 3 drives, the output torque adjustment range of a single drive is 130—300Nm, and the reel is wound The direction is right (R), and this model cable reel is equipped with a limit switch.

J1D-4 is the collector model using three I-type power rings, the single ring withstands current of 400A, each ring with 3 pairs of carbon brushes, each pair of carbon brushes withstand current is 130A, and is equipped with 1 I-type grounding ring, single ring The withstand current is 400A, each ring of carbon brushes has 2 pairs, and each pair withstands a current of 130A.
