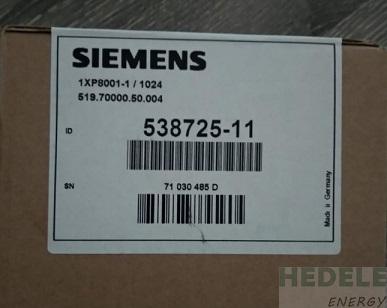

1XP8001-1/1024
delivery time：in stock
Manufacturer : Siemens
Product No. : 1XP8001-1/1024
Product type : Rotary Encoder
Supply : +10 V to +30 V (HTL)
Current input without load: 200mA
Maximum load current per output : 100mA
Resolution, Pulses per revolution : 1024
Pulse offset between the two outputs : 90 ± 20%
Output amplitude : U High> UB-3.5V, U Low< 3V
Minimum edge interval : 0.8uS at 160 KHz
Edge sttepness(without load or cable): t+, t-<200 ns
Maximum frequency : 160 kHz
Maximum speed : 9000 /MIN; 9000 rpm
Temperature range : -20 C to 100C
Degree of protection : IP66
Maximum radial cantilever force : 60N
Maximum axial force : 40N
Termination system : 12-PIN
12-way plug (socket supplied)
