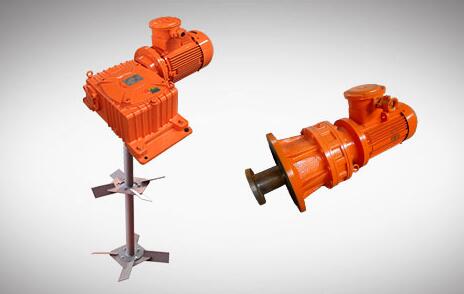

JBQ11 Mud Agitator 11KW DE-AG-15-V
1
  • JBQ11 Mud Agitator 11KW DE-AG-15-V
2
views: 1254

JBQ11 Mud Agitator 11KW DE-AG-15-V

Rate:
0.0000/5

( 0 reviews )

Item NO.: V023533 MOQ: 0
Weight:    860kgs
Package Size:
 Price:
$2400.00
 Qty:
      $2400.00
 Shipping:   Calculate Shipping Cost

JBQ11 Mud Agitator 11KW DE-AG-15-V

In stock



model JBQ5.5 JBQ7.5 JBQ11 JBQ15
Motor Power 5.5KW(7.5hp) 7.5KW(10hp) 11KW(15hp) 15KW(20hp)
Impeller speed 60/72RPM 60/72RPM 60/72RPM 60/72RPM
Standard single impeller diameter 850mm 950mm 1050mm 1200mm
Standard double impeller diameter N/A Up:800mm Up:850mm Up:950mm
Down:800mm Down:850mm Down:950mm
Reduction ratio 25:01:00 25:01:00 25:01:00 25:01:00
size 870×600×480mm 906×600×480mm 1075×650×525mm 1170×720×565mm
Stirring shaft length According to the inner depth of the tank
Electric system 380V/50HZ,460V/60HZ
