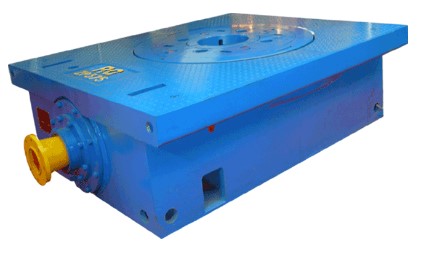

ZP135 Turntable
| model | ZP135 | ZP175 | ZP205 | ZP275 | ZP375 | ZP375Z | ZP495 | |
| Through hole diameter (mm) | 292 | 444.5 | 520.7 | 698.5 | 952.5 | 952.5 | 1257.3 | |
| Maximum static load (kN) | 1350 | 2250 | 3150 | 4500 | 5850 | 7250 | 9000 | |
| Rated torque (kN.m) | 12 | 13.7 | 22.5 | 27.5 | 32.36 | 45 | 64 | |
| Distance between the center line of the turntable and the center line of the teeth in the sprocket (mm) | 1118 | 1118 | 1353 | 1353 | 1353 | 1353 | 1651 | |
| Maximum speed r/min | 300 | 300 | 300 | 300 | 300 | 300 | 300 | |
| Gear ratio | 3.5 | 3.58 | 3.62 | 3.67 | 3.56 | 3.62 | 3.913 | |
| Center height mm | 160 | 270 | 318 | 330 | 330 | 330 | 368 | |
| Dimensions (mm) | long | 1705 | 1902 | 2309 | 2417 | 2468 | 2468 | 3015 |
| width | 1070 | 1280 | 1475 | 1680 | 1810 | 1810 | 2254 | |
| high | 378 | 575 | 668 | 686 | 718 | 718 | 819 | |
| Quality (kg) | 1364 | 3737 | 4177 | 6773 | 8026 | 8290 | 12105 | |
