The master bushings

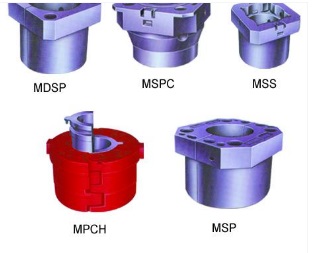

Our company produce the master bushings and insert bowls with the size from 17 1/2 to 37 1/2 inch. They are cast with high-quality alloy steel and the sizes conform to API Spec 7K. There are two types, pin drive and square drive. API standard rotary slip, drill collar slip, casing slip or roller Kelly bushing can be contained in them.
Main technical parameters:
|
Bushing Type |
Rotary Table Size(in) |
Insert Bowls |
Handing Tubular OD (in) |
|
MSS Solid body and Split body |
17 1/2 |
API Bowl 1011 |
2 3/8-8 5/8 |
|
EXT. Bowl 1024 |
|||
|
20 1/2 |
API Bowl 1011 |
2 3/8-8 5/8 |
|
|
EXT. Bowl 1024 |
|||
|
27 1/2 |
API Bowl 1022 |
2 3/8-8 5/8 |
|
|
EXT. Bowl 1025 |
|||
|
Insert Bowl 1026 |
9 5/8-10 3/4 |
||
|
MDSP Split body |
17 1/2 |
EXT. No.3 Taper |
2 3/8-8 5/8 |
|
20 1/2 |
EXT. No.3 Taper |
2 3/8-8 5/8 |
|
|
MSPC Solid body |
20 1/2 |
EXT. Bowl 1809 |
2 3/8-8 5/8 |
|
Bowl 1902 |
9 5/8-10 3/4 |
||
|
Body only 1805 |
11 3/4-13 3/8 |
||
|
27 1/2 |
Bowl 1810(No3) |
2 3/8-8 5/8 |
|
|
Bowl 1904(No2) |
9 5/8-10 3/4 |
||
|
Bowl 1903(No1) |
11 3/4-13 3/8 |
||
|
MSP Split body |
27 1/2 |
EXT. No.3 Taper |
2 3/8-8 5/8 |
|
MPCH |
37 1/2 |
Bowl 6608(No3) |
2 3/8-8 5/8 |
|
Bowl 6609(No2) |
9 5/8-10 3/4 |
||
|
Bowl 6610(No1) |
11 3/4-13 3/8 |
