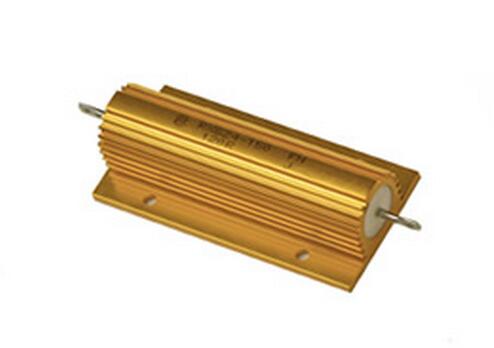

The resistor has a metal aluminum shell radiator, which is small in size and large in power load. It is installed on the heat sink board and is suitable for DC or AC circuits. If you want to use it for high frequency circuits, you can order non-inductive products (add “N” before the mark). ). The package form is: silicone resin, epoxy resin, silica sand package.
| Model | power (25C)(With heat sink) | Power 25C（Without heat sink） | Resistance rangeΩ | Dimensions(mm) | Weight(g) | Recommended standard heat sink (cm2) thickness 3mm | |||||

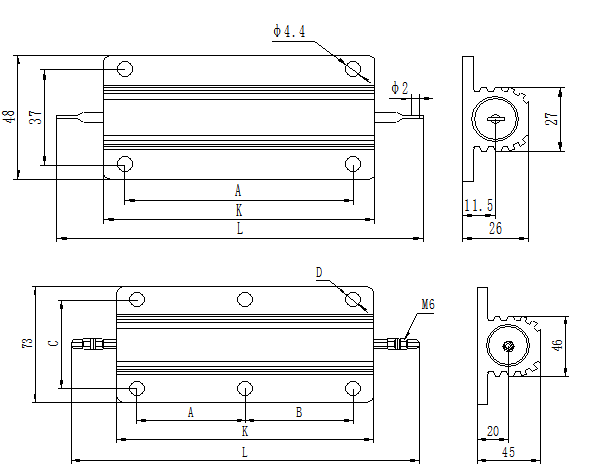

| L±3 | K±1 | A±0.5 | B±0.5 | C±0.5 | D±0.3 | ||||||
| RXG24-75 | 75 | 45 | 1-20K | 80 | 49 | 29 | 90 | 1000 | |||
| RXG24-100 | 100 | 50 | 1-20K | 96 | 65.5 | 35 | 120 | 1000 | |||
| RXG24-150 | 150 | 55 | 1-24K | 128 | 98 | 58 | 180 | 1000 | |||
| RXG24-200 | 200 | 50 | 1-18K | 143 | 90 | 35 | 35 | 57.5 | 5.5 | 480 | 3755 |
| RXG24-250 | 250 | 60 | 1-15K | 161 | 109 | 44.5 | 44.5 | 57.5 | 5.5 | 605 | 4775 |
| RXG24-300 | 300 | 75 | 1-10K | 181 | 128 | 52 | 52 | 57.5 | 6.5 | 705 | 5795 |
| RXG24-400 | 400 | 125 | 1-20K | 240 | 176 | 73 | 73 | 57.5 | 5.5 | 790 | 6795 |
| RXG24-500 | 500 | 100 | 1-15K | 203 | 146 | 52 | 52 | 59 | 6.5 | 660 | 6795 |
| RXG24-600 | 600 | 300 | 1-30K | 320 | 266 | 120 | 120 | 58 | 5.5 | 1300 | 10000 |
| RXG24-1000 | 1000 | 500 | 1-30K | 340 | 290 | 125 | 125 | 59 | 6.5 | 1390 | 10000 |
