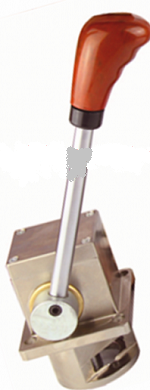

Driller's Operating Handle Assembly

PS Hydraulic Disc Brake Device and Accessories






1: PSZ65, PSZ75 Beishi disc brake device.






2: BK65, BK75 Boke hydraulic disc brake device.






3: PS40, PS50, PS70, PS80, PS90 and PS120 disc brakes.






4: PSK50, PSK70 and PSK80 universal disc brakes.






(Accessories: actuators - Brake discs, pliers, working pliers, safety pliers, working cylinders, safety cylinders, brake blocks, reset springs, disc springs, cylinder repair kits; operating agencies - driller valve assembly, brake assembly, brake valves, parking valves and so on; hydraulic stations - plunger pumps, valves, filters, plunger pumps, quick joints, hydraulic control valves, pneumatic control valves, accumulators, etc.).






PS series hydraulic control disc brake device has the advantages of high lifting power, good heat recession resistance, easy operation and quick response; less down-time maintenance, fast replacement of brake blocks, high control accuracy, remote control operation, easy realization of automatic drilling, automatic drilling and other high-precision automatic control; at the same time, it has reliable operation, backup system, low noise, high safety performance to avoid injuries and accidents. Sheng and other characteristics are widely used in oil and gas rig workover rig!






PS series hydraulic control disc brake device consists of actuator, control mechanism and hydraulic station.






Hydraulic station is power source, which consists of fuel tank assembly, pump group, accumulator assembly, refueling assembly and electronic control cabinet. Control mechanism is power control link, which consists of brake valve assembly, control valve group, pipeline, pressure gauge and so on. Actuator is working execution part, which consists of brake pliers, pliers and brake discs. Brake pliers are divided into working pliers and safety pliers. Type. There is a hydraulic manifold connection between the three parts. The device has been serialized and specialized in production. There are PS120, PS90, PS80, PS75, PS70, PS65, PS50, PS25, PSX50 9 models, which can be completely applicable to different models, different types of drilling rigs, workover rigs and through rigs. Our products are exchanged with the following manufacturers: Beishi/Boko PSZ75/65, Baoye PS120/90/80/75 and Universal PSK90/75/65.






XIAN JUTONG is a scientific and technological industry and trade enterprise with independent import and export rights, which integrates the design, development, production, sales and service of oil rig equipment. Company to: (gemstone, Honghua, Rongsheng, etc.) oil drilling mud pump accessories; (2, 4) truck rig and workover rig accessories and winch accessories; (Beishi, Boke, gemstone) hydraulic disc brake accessories and other ancillary products, our products and the above manufacturers have complete interchangeability. The products strictly comply with the requirements of the quality management system of GB/TI9001-2008-ISO9001-2008, and are manufactured and tested in accordance with the industry standards SY5138-92, SY/T6760-2010 and API standards of the United States.






At present, the company's products have been used as supporting products by many domestic oil equipment manufacturers and recognized by major domestic oil fields. The products are not only sold in China, but also exported to Russia, Kazakhstan and other Central Asian countries and regions, which have received unanimous praise from foreign businessmen.
