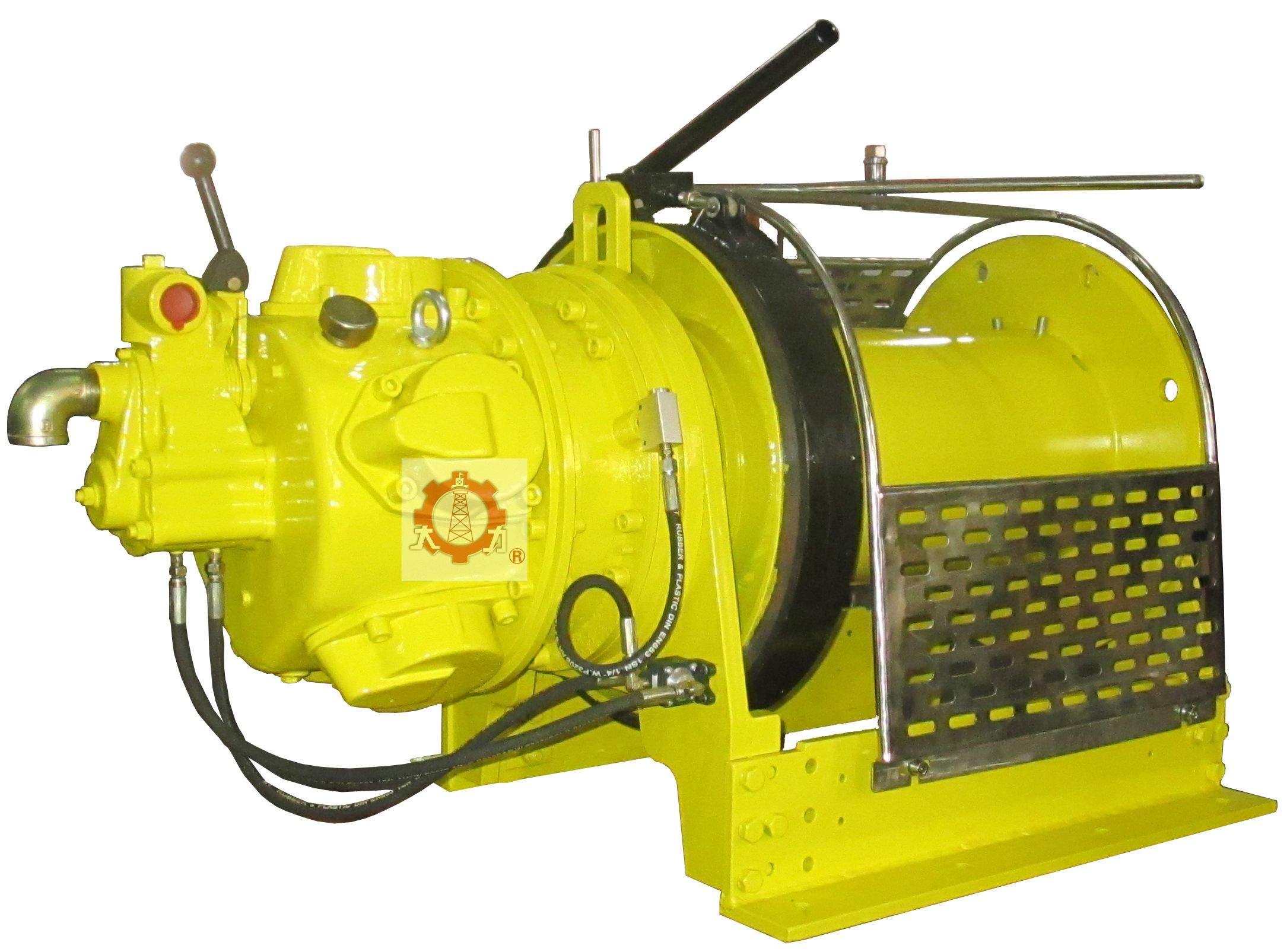

JQHS50 Remote Control Air Winch (Disc Brake Type)

Remote Control winch with half drum capacity of 5000lbs

Introduction:

JQHS50 air winch is a kind of single drum type air winch. It adopts compressed air as its power to drive air motor, driving drum via two grades gear (to reduce transmitting speed and enlarge torque) so as to lift and drag heavy cargo. Considering security, this winch is adopts disc air brake. This winch is widely used for drilling platform, marines, minings, engineering sites, etc. to pull heavy cargo.

Features:

1. Small in size, light in weight, high in mobility.

2. Flexible to move forward and backward, step-less in speed control.

3. Manual band brake and automatic disc brake. The disc brake keeps winch in brake when winch stops working, providing good safety-guard to winch operation.

4. High starting torque enables start with load, with anti-overload function.

5. Small size, light weight, and mobility.

6. Anti-explosive function, reliable operation under inflammable and explosive environment.

7. Safe operation under high wet, damp conditions.

Technical Parameters:

Working Air Pressure

90PSI

Half Drum Capacity

2273kg

Rope speed

30.5-36.5 m/min

Drum length

406 mm

Rope diameter

16 mm

Rope capacity

140 m

Motor Air Inlet size

1.5” NPT

Control Type

Remote Controlling

Brake type

Auto Disc Brake+ Manual Band Brake

Safety Protection

Drum Guard



Air motor



Cylinder Number

5PCS

Free Speed Rotation

650 rpm

Working Pressure

0.62-0.9MPa

Rated Power

20kW

Consumption

19.8m3/min

Dimension

Length*Width*Height

1350 mm*900mm*920mm

Weight

850 kg
