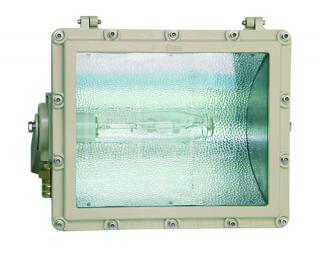

Scope
◆ product is suitable for petrochemical plants, pumping stations, offshore oil platforms, oil depots and other flammable station premises, facilities and making
Boat industry as fixed lighting.
Features
◆ efficient gas-discharge light source, long life, light, electrical Philips technology to achieve the best match.
◆ good electromagnetic compatibility, will not impact on the surrounding environment.
◆ high-quality die casting aluminum lamp housing, corrosion-resistant, waterproof, dustproof, seismic performance.
◆ Lighting Protection class IP66, Class I electrical insulation protection.
◆ imported anodized aluminum reflector, better light efficiency, glare less.
◆ light body can rotate 3600 levels, elevation in 1800 adjustable positioning.
◆ external explosion-proof electrical boxes, separable mounting can also be installed in the back of the luminaire become one.
技术参数
|
额定电压
|
220VAC 50Hz
|
|
外形尺寸GF101-400F（GF101-250F）
|
500×364×204mm
|
|
重量
|
17kg
|
|
防爆等级
|
ExdIIBT3/ExdIIBT4
|
|
外壳防护
|
IP65
|
|
绝缘等级
|
Ⅰ
|
|
防腐等级
|
WF2
|
