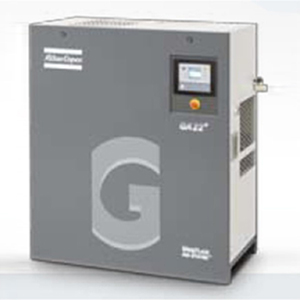

Mute air compressor GAe11-30

Rate:

0.0000/5

( 0 reviews )

Item NO.: V017622 MOQ: 0

Weight: 0kgs

Package Size:

Price：

$0.00

Qty：

$0.00

Shipping：

Calculate Shipping Cost

Performance compressor
Performance, efficient and reliable, meet your needs for the most advanced products.
Industry-leading displacement.
Low energy consumption, low noise.
New built-in dryer, excellent quality dry compressed air.
New Elektronikon controller icon display for easy handling and maintenance.
Performance compressor
Performance, efficient and reliable, meet your needs for the most advanced products.
1. Industry-leading displacement.
2. Low energy consumption, low noise.
3. The new built-in dryer, excellent quality dry compressed air.

4. New Elektronikon controller icon display for easy handling and maintenance.

型号	最大工作压力				流量FAD*			电机功率		噪音	重量（kg）		长 (mm)	宽 (mm)	高 (mm)
	现场型		全性能		流量FAD*			电机功率		噪音	重量（kg）
	bar	pisg	bar	pisg	l/s	m³ /min	cfm	kW	hp	dB	现场型	全性能
50Hz VERSION
GAe 11 7.5	7.5	109	7.3	105	33.5	2.0	70.9	11	15	67	418	472	1255	692	1475
8.5	8.5	116	8.3	112	31.4	1.9	66.5	11	15	67	418	472	1255	692	1475
10	10	145	9.8	141	26.0	1.6	55.1	11	15	67	418	472	1255	692	1475
13	13	189	12.8	185	20.4	1.2	43.2	11	15	67	418	472	1255	692	1475
GAe 15 7.5	7.5	109	7.3	105	44.9	2.7	95.1	15	20	67	425	479	1255	692	1475
8.5	8.5	116	8.3	112	41.2	2.5	87.2	15	20	67	425	479	1255	692	1475
10	10	145	9.8	141	37.8	2.3	80.0	15	20	67	425	479	1255	692	1475
13	13	189	12.8	185	31.6	1.9	66.9	15	20	67	425	479	1255	692	1475
GAe 18 7.5	7.5	109	7.3	105	54.8	3.3	116.0	18.5	25	68	450	504	1255	692	1475
8.5	8.5	116	8.3	112	51.7	3.1	109.5	18.5	25	68	450	504	1255	692	1475
10	10	145	9.8	141	45.3	2.7	95.9	18.5	25	68	450	504	1255	692	1475
13	13	189	12.8	185	39.1	2.3	82.8	18.5	25	68	450	504	1255	692	1475
GAe 22 7.5	7.5	109	7.3	105	63.1	3.8	133.6	22	30	69	467	523	1255	692	1475
8.5	8.5	116	8.3	112	61.1	3.7	129.4	22	30	69	467	523	1255	692	1475
10	10	145	9.8	141	54.2	3.3	114.2	22	30	69	467	523	1255	692	1475
13	13	189	12.8	185	47.3	2.8	100.2	22	30	69	467	523	1255	692	1475
GAe26 7.5	7.5	109	7.3	105	71.0	4.3	150.4	26	35	70	511	569	1255	692	1475
8.5	8.5	116	8.3	112	66.3	4.0	140.4	26	35	70	511	569	1255	692	1475
10	10	145	9.8	141	62.0	3.7	131.3	26	35	70	511	569	1255	692	1475
13	13	189	12.8	185	52.0	3.1	110.1	26	35	70	511	569	1255	692	1475
GAe 30 7.5	7.5	109	7.3	105	80.0	4.8	169.4	30	40	71	524	582	1255	692	1475
8.5	8.5	116	8.3	112	75.7	4.5	160.3	30	40	71	524	582	1255	692	1475
10	10	145	9.8	141	71.0	4.3	150.4	30	40	71	524	582	1255	692	1475
13	13	189	12.8	185	61.3	3.7	129.8	30	40	71	524	582	1255	692	1475
