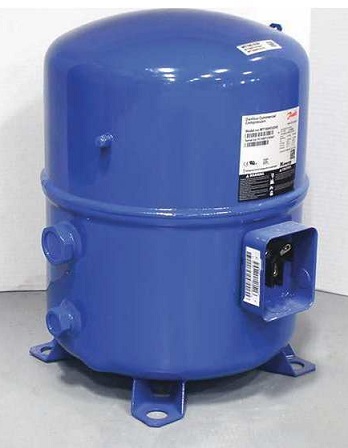

MTM288T4SA piston compressor
delivery time：30 days
Maneurop / Meiyou piston compressor MTM288T4SA detailed
parameters
Type code
MTM
net
weight
148.00 Kg
Certification
standards
CE; UL
Power
regulation
Fixed speed
colour
blue
Composition
2 x MT144HV4VE
Energy
saving device
No
Generate
code
A
IP
protection
IP54 (with cable cover)
MCC
30 + 30 A
Rated
cooling capacity 60 kBTU / h
281.23
Nominal
cooling capacity at 50Hz
63
Nominal
cooling capacity at 60Hz
82.4
Oil and
gas charge [L]
7.8
Oil
balancing moment [Nm]
30
Packing
Single package
Power
phase
3
Power
connection
Screw connection 10-32 UNF x
9.5
Use
phase
Air conditioning; Refrigeration
MT
Platform
speed
Constant speed
Displacement
volume [cm3]
483.74
Way of
working
piston
Total
height [mm]
565
Starting
device 1
7705007
Starting
device 1 description
Electronic soft starter, MCI 25
C
Starting
device 2
7705001
Starting
device 2 description
Soft starter with stator
resistance, pre-junction box, SCR03
Electrical
cabinet top cover
8156135
Electrical
cabinet top cover Description
Barium wire shipping service
(96 x 115 mmA) (1 shipping cover A1 clip)
PTC
120Z0459
PTC
description
PTC heater 27W, CE marked, UL
Installation
kit 1
8156007
Installation
kit 1 description
Installation kit for
four-cylinder compressors and MS compressors including 4 gasket rings, 4
bolts
Acoustic
enclosure 1
120Z0577
Acoustic
enclosure 1 Description
Acoustic hood for four-cylinder
compressor
Acoustic
enclosure 2
120Z0577
Acoustic
cover 2 Description
Acoustic hood for four-cylinder
compressor
Junction
Box
8173230
Junction
box Description
T block connector 52 x 57 mm
Belt 02
7773108
Belt 02
description
Belt type crankcase heater, 75
W, 230 V, CE mark, UL
Belt 03
7773118
Belt 03
description
Belt type crankcase heater, 75
W, 400 V, CE mark, UL
Belt 05
120Z0464
Belt 05
description
Belt type crankcase heater, 75
W, 460 V, CE mark, UL
Oil 1
7754001
Oil 1
description
Mineral oil, 160P, 2 liter can
Oil
sight glass
8156019
Oil
sight description
Oil sight glass with washers
(black and white)
Oil
glass washer
8156145
Oil
glass washer Description
Gasket oil sight (black
neoprene)
Low-voltage
instrument interface
Schrader
The
refrigerant
R22
Refrigerant
charge [kg] [Max]
20
Packing
quantity
1
Factory
set low pressure [bar]
25
Factory
set high pressure [bar]
25
Suction
connection size [in]
1 5/8
Suction
connection pipe size [in]
1 5/8
Brand
Technology
Two-machine parallel piston
compressor
Model
code
MTM288T4SA
Model
designation
Compressor
Stall
current
115 + 115 A
Installation
standard
ODF
Installation
torque [Nm]
50
Width
[mm]
925
Gross
weight
162.00 Kg
Exhaust
valve [Nm]
50
Exhaust
Gasket [Nm]
15
Exhaust
angle valve
8504016b2
Exhaust
connection size [in]
1 1/8
Exhaust
connection pipe size [in]
1 1/8
Grounding
torque [Nm]
2
Provided
oil
Initial oil injection
Provide
description
Installation Instructions
Rotation
speed (50Hz [rpm]
2900
Rotation
speed (60Hz [rpm]
3500
Low
nominal voltage (50Hz) [V]
380
Low
nominal voltage (60Hz) [V]
460
High
nominal voltage (50Hz)
400
High
nominal voltage (60Hz)
460
Starts
per hour [Max]
12
cylinder
4 + 4
oil
160P
Oil
balance
Interconnected
Pressure
relief valve
30 bar / 8 bar
Test
low pressure [bar] [Max]
25
Test
pressure difference [bar] [Max]
30
Test
high voltage [bar] [Max]
30
Motor
protection
Built-in overload protector
Low
voltage range (50Hz [V]
340
Low
voltage range (60Hz) [V]
414
High
value of voltage range (50Hz) [V]
460
High
voltage range (60Hz)
506
Power
torque [Nm]
3
Coil
resistance of three-phase compressor with the same coil [Ohm]
1.19 + 1.19 Ohm
Viscosity
[cP]
32
Sight
glass installation
Thread
Connection
Type
brazing
Configuration
code
Tandem
Length
[mm]
515
Frequency
[Hz]
50/60
High-voltage
instrument interface
Schrader
