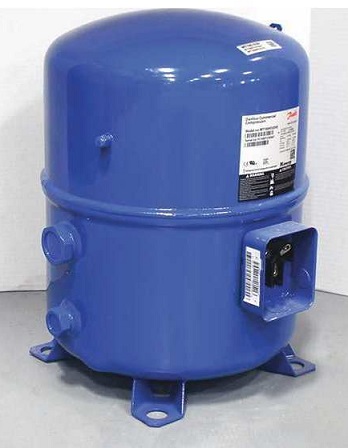

120F0037 piston compressor
delivery time：30 days
| Maneurop / Meiyoule piston compressor 120F0037 detailed parameters | |
| Type code | NTZ |
| net weight | 35.00 Kg |
| Certification standards | CE; UL |
| Power regulation | Fixed speed |
| colour | blue |
| Diameter [mm] | 288 |
| Discharge height [mm] | 74 |
| EAN | 5702428840002 |
| Energy saving device | No |
| Installation attention | (Only for threaded connection) |
| Generate code | A |
| IP protection | IP55 (with cable cover) |
| MCC | 29 A |
| Nominal cooling capacity at 60Hz | 4.4 |
| Oil and gas charge [L] | 1.8 |
| Oil balancing moment [Nm] | 30 |
| Packaging width [mm] | 800 |
| Packing | industrial package |
| Power phase | 3 |
| Power connection | Fork piece |
| Use phase | Refrigeration LT |
| Platform speed | Constant speed |
| Suction port connection height [mm] | 265 |
| Displacement volume [cm3] | 136 |
| Way of working | piston |
| Total height [mm] | 413 |
| Valve block | 7703009 |
| Valve block Description | Valve set, V02 (1-3 / 4 "~ 1-1 / 8"), V04 (1-1 / 4 "~ 3/4") |
| Electrical cabinet top cover | 8156134 |
| Electrical cabinet top cover Description | Barium wire shipping service 80 x 96 mmA] 珹 1 shipping cap A1 clip ㄣ |
| Suction valve | 8168028 |
| Suction valve Description | Threaded connection valve V02 (1-3 / 4 "threaded connection, 1-1 / 8" ODF connection) |
| Suction bush | 8153004 |
| Suction Bushing Description | Solder ring P02 (1-3 / 4 "thread connector, 1-1 / 8" ODF connector) |
| Suction washer | 8156132 |
| Suction gasket Description | Gasket, 1-3 / 4 " |
| PTC | 120Z0459 |
| PTC description | PTC heater 27W, CE marked, UL |
| Installation kit 1 | 8156001 |
| Installation kit 1 description | Mounting kit for single-cylinder and two-cylinder compressors including 3 gasket rings, 3 bolts |
| Vent | 8168029 |
| Exhaust valve Description | Threaded connection valve V09 (1-1 / 4 "threaded connection, 3/4" ODF connection) |
| Exhaust bushing | 8153008 |
| Exhaust Bushing Description | Solder ring P04 (1-1 / 4 "threaded interface, 3/4" ODF interface) |
| Exhaust Gasket | 8156131 |
| Exhaust Gasket Description | Gasket, 1-1 / 4 " |
| Acoustic enclosure 1 | 120Z0576 |
| Acoustic enclosure 1 Description | Acoustic hood for two-cylinder compressor |
| Acoustic enclosure 2 | 120Z0576 |
| Acoustic cover 2 Description | Acoustic hood for two-cylinder compressor |
| Gasket assembly | 8156009 |
| Gasket assembly Description | Washer set, 1 ", 1-1 / 4", 1-3 / 4 ", OSG washer (black and white) |
| Belt 01 | 7773109 |
| Belt 01 description | Belt type crankcase heater, 65 W, 110 V, CE mark, UL |
| Belt 02 | 7773107 |
| Belt 02 description | Belt type crankcase heater, 65 W, 230 V, CE mark, UL |
| Oil 1 | 7754019 |
| Oil 1 description | POE lubricant, 160PZ, 1 liter can |
| Oil sight glass | 8156019 |
| Oil sight description | Oil sight glass with washers (black and white) |
| Oil glass washer | 8156145 |
| Oil glass washer Description | Gasket oil sight (black neoprene) |
| Low-voltage instrument interface | Schrader |
| The refrigerant | R404A; R507A |
| Refrigerant charge [kg] [Max] | 5 |
| Packing quantity | 6 |
| Package length [mm] | 1150 |
| Package weight [Kg] | 208 |
| Packaging height [mm] | 600 |
| Factory set low pressure [bar] | 25 |
| Factory set high pressure [bar] | 25 |
| Suction connection size [in] | 1 3/4 |
| Suction connection bushing pipe size [in] | 1 1/8 |
| Suction connection installation torque [Nm] | 110 |
| Suction connection pipe size [in] | 1 1/8 |
| Suction connection thread interface size [in] | 1 3/4 |
| Brand Technology | Reciprocating compressor |
| Model code | NTZ136A3LR1A |
| Model designation | Compressor |
| Stall current | 97.2 A |
| Installation standard | Rotolock |
| Installation torque [Nm] | 15 |
| Install the sheath | ODF |
| Gross weight | 37.33 Kg |
| Exhaust valve [Nm] | 50 |
| Exhaust Gasket [Nm] | 15 |
| Exhaust angle valve | 8502012g |
| Exhaust connection size [in] | 1 1/4 |
| Exhaust connection bushing pipe size [in] | 3/4 |
| Exhaust connection installation torque [Nm] | 90 |
| Exhaust connection pipe size [in] | 3/4 |
| Exhaust connection thread interface size [in] | 1 1/4 |
| Grounding torque [Nm] | 2 |
| Provided oil | Initial oil injection |
| Mounting kit available | Mounting kit (includes washer, bolt, nut, sheath and washer) |
| Provide device | Suction and exhaust solder rings, threaded connections and washers |
| Provide description | Installation Instructions |
| Rotation speed (50Hz [rpm] | 0 |
| Rotation speed (60Hz [rpm] | 3500 |
| Low nominal voltage (50Hz) [V] | 0 |
| Low nominal voltage (60Hz) [V] | 200 |
| High nominal voltage (50Hz) | 0 |
| High nominal voltage (60Hz) | 230 |
| Starts per hour [Max] | 12 |
| cylinder | 2 |
| oil | 160Z |
| Oil balance | 3/8 '' flare SAE |
| Pressure relief valve | 30 bar / 8 bar |
| Test low pressure [bar] [Max] | 25 |
| Test pressure difference [bar] [Max] | 30 |
| Test high voltage [bar] [Max] | 30 |
| Motor protection | Built-in overload protector |
| Low voltage range (50Hz [V] | 0 |
| Low voltage range (60Hz) [V] | 180 |
| High value of voltage range (50Hz) [V] | 0 |
| High voltage range (60Hz) | 253 |
| Coil resistance of three-phase compressor with the same coil [Ohm] | 0.98 Ohm |
| Viscosity [cP] | 32 |
| Sight glass installation | Thread |
| Connection Type | Threaded interface |
| Configuration code | Stand-alone |
| Frequency [Hz] | 60 |
| High-voltage instrument interface | no |
