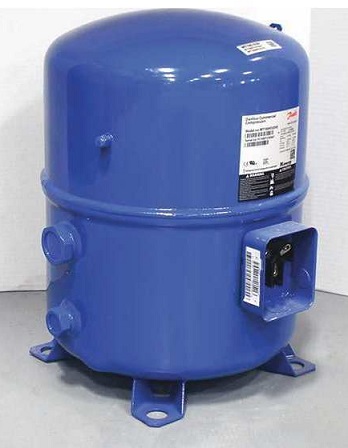

120F0035 piston compressor
delivery time：30 days
Maneurop / Meiyoule piston compressor 120F0035 detailed
parameters
Type code
NTZ
net
weight
35.38 Kg
Certification
standards
CE; UL
Power
regulation
Fixed speed
colour
blue
Diameter
[mm]
288
Discharge
height [mm]
74
Energy
saving device
No
Installation
attention
(Only for threaded connection)
Generate
code
A
IP
protection
IP55 (with cable cover)
MCC
20.4 A
Nominal
cooling capacity at 60Hz
2.9
Oil and
gas charge [L]
1.8
Oil
balancing moment [Nm]
30
Packaging
width [mm]
800
Packing
industrial package
Power
phase
3
Power
connection
Fork piece
Use
phase
Refrigeration LT
Platform
speed
Constant speed
Suction
port connection height [mm]
265
Displacement
volume [cm3]
96
Way of
working
piston
Total
height [mm]
413
Valve
block
7703006
Valve
block Description
Valve set, V07 (1-3 / 4 "~
7/8"), V04 (1-1 / 4 "~ 3/4")
Electrical
cabinet top cover
8156134
Electrical
cabinet top cover Description
Barium wire shipping service 80
x 96 mmA] 珹 1 shipping cap A1
clip ㄣ
Suction
valve
8168032
Suction
valve Description
Threaded connection valve V07
(1-3 / 4 "threaded connection, 7/8" ODF connection)
Suction
bush
8153013
Suction
Bushing Description
Solder ring P07 (1-3 / 4
"thread connection, 7/8" ODF connection)
Suction
washer
8156132
Suction
gasket Description
Gasket, 1-3 / 4 "
PTC
120Z0459
PTC
description
PTC heater 27W, CE marked, UL
Installation
kit 1
8156001
Installation
kit 1 description
Mounting kit for
single-cylinder and two-cylinder compressors including 3 gasket rings, 3
bolts
Vent
8168029
Exhaust
valve Description
Threaded connection valve V09
(1-1 / 4 "threaded connection, 3/4" ODF connection)
Exhaust
bushing
8153008
Exhaust
Bushing Description
Solder ring P04 (1-1 / 4
"threaded interface, 3/4" ODF interface)
Exhaust
Gasket
8156131
Exhaust
Gasket Description
Gasket, 1-1 / 4 "
Acoustic
enclosure 1
120Z0576
Acoustic
enclosure 1 Description
Acoustic hood for two-cylinder
compressor
Acoustic
enclosure 2
120Z0576
Acoustic
cover 2 Description
Acoustic hood for two-cylinder
compressor
Gasket
assembly
8156009
Gasket
assembly Description
Washer set, 1 ", 1-1 /
4", 1-3 / 4 ", OSG washer (black and white)
Belt 01
7773109
Belt 01
description
Belt type crankcase heater, 65
W, 110 V, CE mark, UL
Belt 02
7773107
Belt 02
description
Belt type crankcase heater, 65
W, 230 V, CE mark, UL
Oil 1
7754019
Oil 1
description
POE lubricant, 160PZ, 1 liter
can
Oil
sight glass
8156019
Oil
sight description
Oil sight glass with washers
(black and white)
Oil
glass washer
8156145
Oil
glass washer Description
Gasket oil sight (black
neoprene)
Low-voltage
instrument interface
Schrader
The
refrigerant
R404A; R507A
Refrigerant
charge [kg] [Max]
5
Packing
quantity
6
Package
length [mm]
1150
Package
weight [Kg]
208
Packaging
height [mm]
600
Factory
set low pressure [bar]
25
Factory
set high pressure [bar]
25
Suction
connection size [in]
1 3/4
Suction
connection bushing pipe size [in]
7/8
Suction
connection installation torque [Nm]
110
Suction
connection pipe size [in]
7/8
Suction
connection thread interface size [in]
1 3/4
Brand
Technology
Reciprocating compressor
Model
code
NTZ096A3LR1A
Model
designation
Compressor
Stall
current
72 A
Installation
standard
Rotolock
Installation
torque [Nm]
15
Install
the sheath
ODF
Gross
weight
37.33 Kg
Exhaust
valve [Nm]
50
Exhaust
Gasket [Nm]
15
Exhaust
angle valve
8502012g
Exhaust
connection size [in]
1 1/4
Exhaust
connection bushing pipe size [in]
3/4
Exhaust
connection installation torque [Nm]
90
Exhaust
connection pipe size [in]
3/4
Exhaust
connection thread interface size [in]
1 1/4
Grounding
torque [Nm]
2
Provided
oil
Initial oil injection
Mounting
kit available
Mounting kit (includes washer,
bolt, nut, sheath and washer)
Provide
device
Suction and exhaust solder
rings, threaded connections and washers
Provide
description
Installation Instructions
Rotation
speed (50Hz [rpm]
0
Rotation
speed (60Hz [rpm]
3500
Low
nominal voltage (50Hz) [V]
0
Low
nominal voltage (60Hz) [V]
200
High
nominal voltage (50Hz)
0
High
nominal voltage (60Hz)
230
Starts
per hour [Max]
12
cylinder
2
oil
160Z
Oil
balance
3/8 '' flare SAE
Pressure
relief valve
30 bar / 8 bar
Test
low pressure [bar] [Max]
25
Test
pressure difference [bar] [Max]
30
Test
high voltage [bar] [Max]
30
Motor
protection
Built-in overload protector
Low
voltage range (50Hz [V]
0
Low
voltage range (60Hz) [V]
180
High
value of voltage range (50Hz) [V]
0
High
voltage range (60Hz)
253
Coil
resistance of three-phase compressor with the same coil [Ohm]
1.2 Ohm
Viscosity
[cP]
32
Sight
glass installation
Thread
Connection
Type
Threaded interface
Configuration
code
Stand-alone
Frequency
[Hz]
60
High-voltage
instrument interface
no
