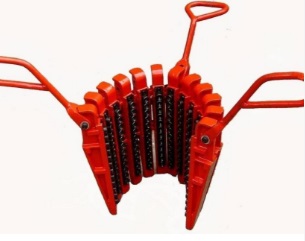

The UC casing slips
The UC casing slips Introduce :
The UC casing slips are designed and manufactured in API 7K and SY5049-91 slips for welling drilling. It is manufactured in a structure of multi-segment pieces with firm structure, light weight and large holding range, which is easy to fit the changing of the external diameter of the casing pipes due to wear and tear.
Technical Specifications:
|
Type |
8 5/8 UC-3 |
10 3/4 UC-3 |
13 3/8 UC-3 |
|||||||
|
Casing OD |
7 |
5/8 |
8 1/8 |
8 5/8 |
9 |
9 5/8 |
10 3/4 |
11 3/4 |
12 3/4 |
13 3/8 |
|
Circular Buttons |
10 |
10 |
12 |
|||||||
|
Total number of segments |
10 |
10 |
12 |
|||||||
|
Handle |
3 |
3 |
4 |
|||||||
|
Fit Bushing |
Fit 4″ taper |
Fit 3″ taper |
||||||||
